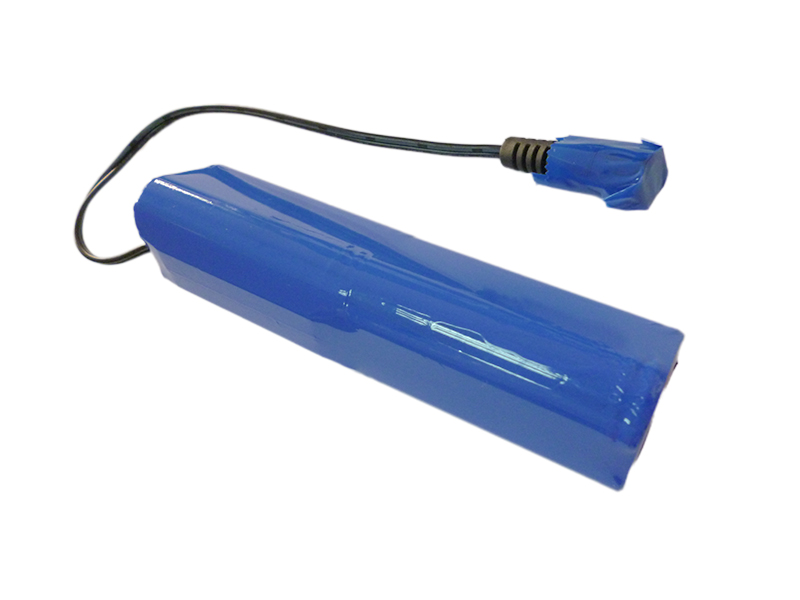

12V cylindrical lithium battery product model: XL 11.1v 4400mAh
Technical parameters of 12V cylindrical lithium battery (can be designed according to customer requirements - voltage / capacity / size / line)
Single battery model: 18650
·Voltage of single cell: 3.7V
·Nominal voltage after battery pack combination: 11.1V
·Capacity of single battery: 2.2Ah
·Battery combination mode: 3 strings and 2 parallels
·Voltage range of battery after combination: 7.5~12.6V
·Battery capacity after combination: 4.4Ah
·Battery pack power: 48.84Wh
·Battery pack size: 38 * 38 * 135mm
·Maximum discharge current: < 3A
·Instantaneous discharge current: 5~7A
·Maximum charging current: 0.2~2C
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, Ti)
12V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
